T16D

16 Fully-proportional Channels Transmitter

Prodigy without Fear

Long-range Module Supported

User-defined Voice Broadcast Pack

freeRTOS+LVGL GUI

Multiple Languages

16 Fully-proportional Channels

100 Group Models Storage


16 Groups of Models

Subsidiary ID Storage


Receiver R16F Support

Upgrade Online

16 Fully-proportional Channels Transmitter

T16D, with 16 fully-proportional channels, exceeds the current high-end sixteen channels remote control which is

only twelve fully-proportional channels, and the eighteen channels which are only fourteen fully-proportional channels.

Rich user-defined functions can satisfy almost all products from engineering vehicles, and robots, to turbojet aircraft.

Cutting-edge Communication Technology

Fearless of Interference


Relying on its pioneering communication algorithms, the Radiolink remote controllers are widely used in robotics,

automotive, security, and other fields. The T16D has upgraded and optimized the original communication technology,

improving the response speed and fault tolerance rate.

4096 Resolution

4000 Meters Control Distance


3ms Response


Mainstream Operating Systems

Maintain a Trailblazing Position through Constant R&D Investment


The mainstream embedded system freeRTOS can synchronize with the latest needs anytime and provide unlimited upgrades.

Plus with LVGL GUI, it realizes a colorful and responsive user interface. Compared with the current CO system used in open-source

high-end remote controls that have stopped updating, freeRTOS is more powerful and efficient. It can embody high-resource processors'

effects on low-resource processors, achieving the perfect combination of performance and price.

Supports ELRS, Crossfire, and Other Mainstream Long-range Modules

Realize FPV aircraft full parameters adjusted by the T16D


It fully supports ELRS, TBS Crossfire, and other mainstream long-range modules to realize FPV aircraft full parameters adjusted by the T16D.

The operating system can be synchronized to its latest version with one click through each long-range module script file.

Realize the perfect combination of the humanized user interface
of the remote control and the various functions of the open-source long-range modules.

ELRS 2.4G 1W

TBS Crossfire Nano TX

TBS

Crossfire TX

BETAFPV

ELRS Micro TX


Due to their large size, the TBS Crossfire Nano TX, TBS Crossfire TX, and BETAFPV ELRS Nano TX do not support direct insertion.

If you need to use them, you must modify the back handle and purchase the fixing seat separately.

BETAFPV

ELRS Nano

TX


Unique Personalized and Humanized Voice Broadcast Customization

Racing Drone Field, You Are the Coolest!


The unique user-defined voice, personalized and humanized voice broadcast.

Voice broadcast language, broadcast form, and broadcast content can be customization according to actual user needs.


Top Configuration | 3ms Response

5

12K bytes RAM, 288MHz Basic Frequency Memory, 2.8 inches, 240*320 pixels 16 colorful screens, freeRTOS system plus LVGL GUI user interface realizes a colorful and responsive user interface. The same level of appearance, throttle joysticks, and gimbals of RC8X.

With eight switches and four knobs, the user experience is uncompromised from electronics to construction.

16 channels respond simultaneously in 3ms, providing accurate response without delay.

Excellent Anti-interference Capability


Excellent anti-interference performance, highly constant, and stable transmission signal present on all 16 channels of T16D.

Hundreds of users can compete at the same time without interference, far exceeding the industry's maximum limit of eight units at the same time.

Help T16D users participate in large-scale events such as

the International University Student Electronics Design/Engineering Competition, or racing drone competitions.


Multiple Languages


The optional language menu includes Chinese, English, German, French, Russian, Japanese, Spanish, Korean, Thai and Polish, etc.

Also, voice broadcasts can be customized in multiple languages.

* More language versions are being added continuously.

Full Models with Full Functions


T16D, the 16 fully proportional channels with full models and functions transmitters, support helicopters,

fixed-wings, gliders, multi-rotors, racing drones, football drones, engineering vehicles, racing boats,

robots, lawnmowers, bait boats, mechas, and other models on the market.

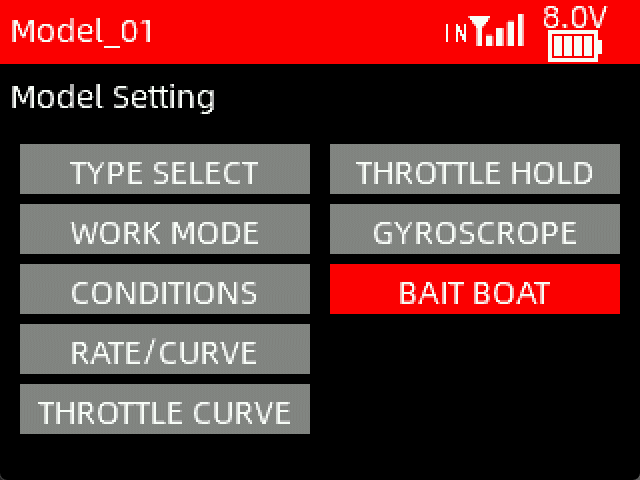

User-defined 100 Fishing Spot


At the BaitBoat Model, the Latitude and Longitude of the 100 fishing spots can be saved on the T16D.

Each of the fishing spots can be self-named by the anglers, so anglers no longer need to think about where the fishing spot is based on the fishing spot number and easy access to their favorite fishing locations.

Wide Compatible


T16D is packed with a 16-channel receiverR16F,

T16D is also compatible with the 12-channel receiver R12F,

the 8-channel receivers R8FG/ R8FGH are designed for lawnmowers, bait boats,

the 8-channel receiverR8EF is designed for fixed-wing or helicopter,

the 8-channel receivers R8SM/R8FM/R8XM are designed for racing drone,

the 6-channel receivers R6FG/R6Fand the 7-channel receiver R7FGdesigned for cars and boats,

4-channel mini receiversR4FGM designed for Mini RC cars.



Recommended Receiver

Helicopter/Fixed-wing







Racing Drone







Car/Boat







Glider







Robots/Lawnmowers

Receiver Supports Upgrade Online


A 16-channel receiver R16F will come with the T16D.

With a Type-C cable (for data transmission) connecting the R16F to the computer,

the latest cutting-edge functions can be easily added without any extra device.

Real-time Latitude and Longitude, Distance, Heading, and Other Information Telemetry


The receiver has a built-in data transmission function*.

The remote control is a 2.8-inch color screen, rich display information such as the name of the fishing spots, the power of the transmitter, receiver and bait boat, the distance meter between the shore and fishing spots, the number of GPS satellites received, etc. will display on the transmitter screen.


Ergonomically Designed


Four 2-position switches, three 3-position switches, 2 pieces of dials, 2 pieces of sliders(can back to the center automatically),

and a trainer switch, plus ergonomically designed make the T16D fit a wide range of pilot needs.

User-friendly design for each operation and handling makes T16D becomes

an excellent transmitter for recreation, competition, or 3D aerobatics flying.

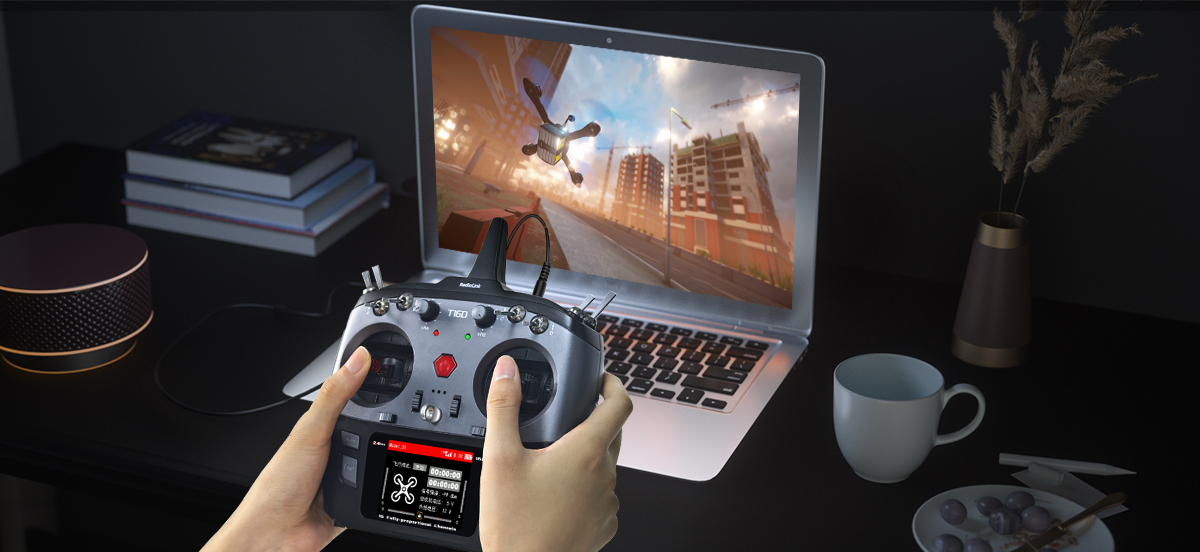

Simulator Function

Trainer Function

Power Supply by Mobile Power Bank (Type-C)


Simulator Function

Trainer Function

VR Knob(will back to the

center position

automatically)

Battery Compartment

Type-C (Firmware Upgrade)

Speaker (for Voice Broadcast)

Memory Expansion Port (comes with a 4G TF card)

Navigation Reminder Parameter Setting Menu

Humanized and Easy to Operate


The new navigation user reminder parameters setting menu is powerful and extremely easy to use.

The transmitter can be used quickly without an instruction manual. It is more user-friendly than AT9S.

Programmable Mix Control Cascade Function

All 16 channels can be programmed to any advanced setting*.

Multiple mixing controls can be cascaded infinitely to achieve one switch controlling any number of channels.

The T16D is the perfect choice whether for daily training equipment or use to compete with the world's top pilots.

Reverse Polarity Protection Circuit

Multiple Power Supply Modes

T16D is easily adapted for various battery layouts with wide operating voltage tolerance:

8 pieces of AA batteries, a 2S-4S LiPo or 18650 Lithium battery, or powered by a computer or mobile power bank connected via Type-C cable.

Universal JST connector with the voltage protection software of Radiolink ensures vital components are protected from a reverse polarity connection.



Pay attention: if you use an 18650 Lithium to power T16D, please make sure the 18650 Lithium is with a JST connector and the dimension of the battery case is 114.4*35.4*32mm.

Power Supply Circuit Design

Provides Longer Battery Life

Switching Mode Power Supply (SMPS) makes the operating amperage of T16D

only 100mA(±10mA)@8.4VDC, it consumes 50% less power than similar products.

The transmitter can operate for twelve hours with an 1800mAh LiPo battery.


Output RSSI Value From Receiver To FPV Monitor

Real-time RSSI Telemetry When Racing

User-Centered Design

Radiolink has always cared about the user experience. With more than 21 years of independent Research and Development,

Radiolink has accumulated rich product knowledge and technical reserves.

Continuous software upgrades have allowed old products such as AT9, and RC3S owners to enjoy cutting-edge technologies and functions.


* All data of T16D are tested in a closed environment in favorable conditions with an unobstructed wireless signal. Actual results may vary depending on the environment, usage, and firmware version.

* While using T16D, if you have some questions about it, you can view the instructions, tutorials, or FAQ to get the answers.

* After viewing all the tutorials, you can consult us via after_service@radiolink.com.cn if you still have questions about the operation.

  • T16D(lransmitter)*1

  • R16F(Receiver)*1

  • TF card (4G)* 1

  • Engine Voltage Telemetry Connect Cable*1

  • R16F to the TELEM1 port of CrossFlight*1

  • R16F CH16 to RC IN port of CrossFlight*1

  • R16F CH14&15 to TELEM2 port of CrossFlight*1

  • Type-C Cable(Upgrade)*1

  • Lanyard*1

  • Hook and Spring*1

  • User Manual*1

  • Carrying Bag*1

T16D Packing List
